Tina Licheepi RV86系統體驗
系統鏡像下載
百度云下載的：鏈接：https://pan.baidu.com/s/1QJTaDw6kkTM4c_GAlmG0hg
提取碼：wbef
燒錄系統鏡像

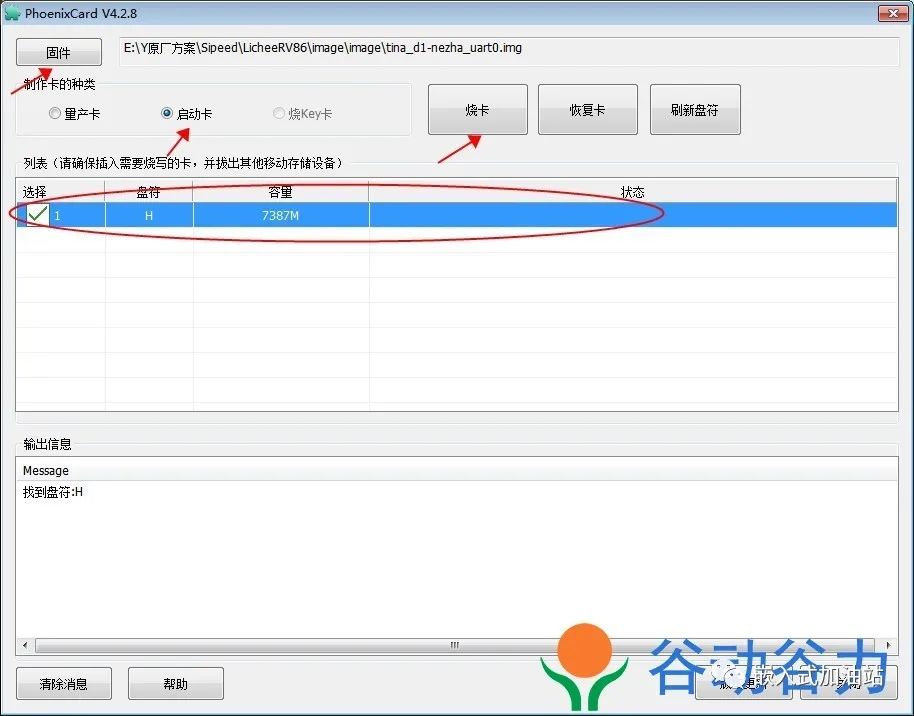

上述下載有工具PhoenixCard燒錄系統鏡像(tina_d1-nezha_uart0.img)到miniSD卡打開燒錄軟件，選擇啟動卡(不知道哪里寫的，我燒錄量產是需要寫NandFlahs才能啟動，板子沒有焊，所以啟動不了，要遷啟動卡)按順序點擊下圖按鍵進行燒錄對應鏡像
運行Tina系統
燒錄后，插入Sipeed LicheeRV 86開發板運行體驗一下吧
..............
BusyBox?v1.27.2?()?built-in?shell?(ash)
__??___?????_????????__???_???/??|/??/__?_(_)_?__??/?/??(_)__??__?____?__?????/?/|_/?/?_?`/?/??/?/?/__/?/?_?/?//?/??//_/ /_/_,_/_//__ /____/_/_//_/_,_//__
----------------------------------------------
Maix Linux (Neptune, 5C1C9C53)
----------------------------------------------
多么熟悉的Logo, 到這運行tina系統，完美結束了，下面體驗一下Debian
Debian鏡像體驗

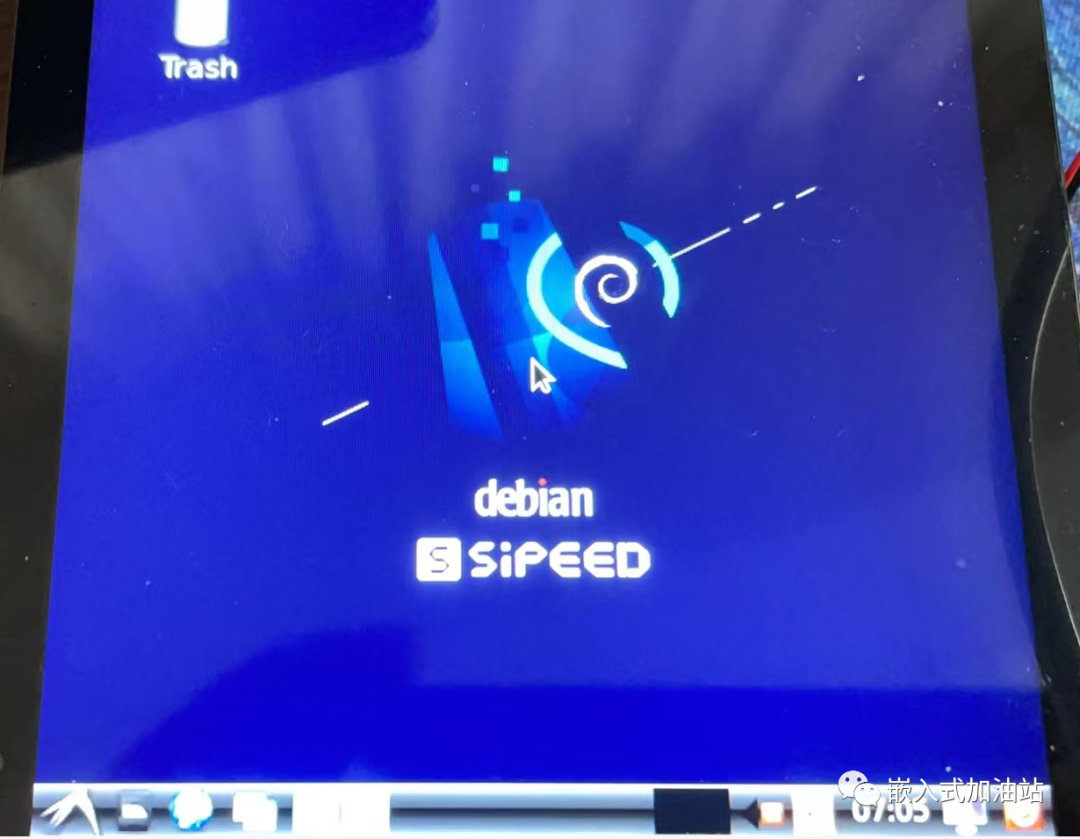

燒錄LicheeRV_Debian_86_480p 為 480p的86盒板卡的debian鏡像燒錄完成后，插卡啟動，稍等2分鐘左右，屏幕上就會顯示登錄界面輸入用戶名 sipeed，密碼 licheepi，即可進入桌面 （使用USB HOST口外接鍵鼠輸入，此操作相當不爽，我還是喜歡ssh）進入桌面后可以進行一些基礎操作
登錄后
連接Debian,默認是有線網絡
無線網絡開不起來，不知道 為什么，有知道的大神告訴一聲：
sipeed@sipeed:~$ ifconfig
eth0: flags=-28605<UP,BROADCAST,RUNNING,MULTICAST,DYNAMIC> mtu 1500
inet 192.168.0.74 netmask 255.255.255.0 broadcast 192.168.0.255
inet6 fe80::476:eeff:fe10:2e4e prefixlen 64 scopeid 0x20<link>
ether 06:76:ee:10:2e:4e txqueuelen 1000 (Ethernet)
RX packets 1189 bytes 113529 (110.8 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 1159 bytes 120178 (117.3 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
device interrupt 62
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 1000 (Local Loopback)
RX packets 8 bytes 400 (400.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 8 bytes 400 (400.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
sipeed@sipeed:~$ sudo ifconfig wlan0 up
SIOCSIFFLAGS: Operation not possible due to RF-kill
可以使用apt安裝程序，可惜沒有RISV的源，愿以后會有吧
sipeed@sipeed:~$ sudo apt install wget
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
Package wget is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
E: Package 'wget' has no installation candidate

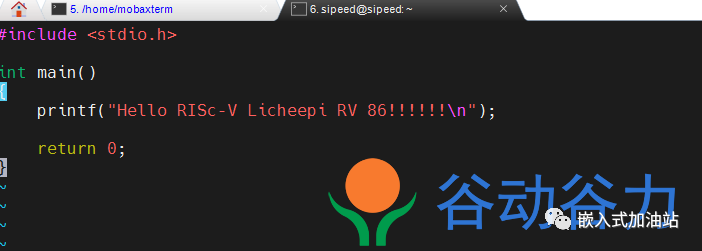

接下來讓我們嘗試在Debian下跑一下Hello World:
編譯運行：
sipeed@sipeed:~$?gcc?-o?hello?hello.c
sipeed@sipeed:~$?./hello
Hello RISc-V Licheepi RV 86!!!!!!
sipeed@sipeed:~$
本來想就這樣開發的，不用PC交叉編譯的，但大項目多線程編譯不過， 有知道的大神告訴一聲謝謝
總結
Tina燒錄系統鏡像 運行挺快的，Debina體驗不爽， 這個MCU性能就不能運行Debian了，又不能apt，可能RISC-V是新生事物吧，沒有源，希望后面會有RISC-V的源
